In order to access BACnet Tags, it is necessary to declare a data server / Bacnet Equipment in ALERT.
Adding a Bacnet data server:

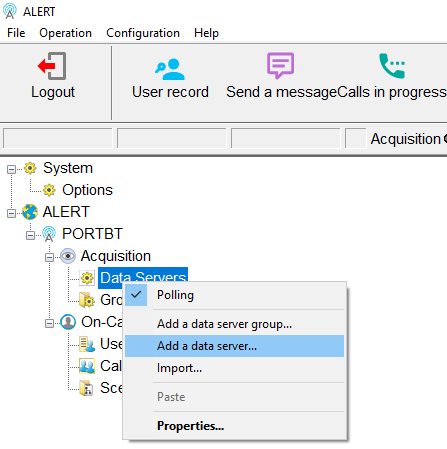

In ALERT tree, do a right click on "Acquisition" or "Data Servers" and select "Add a data server":

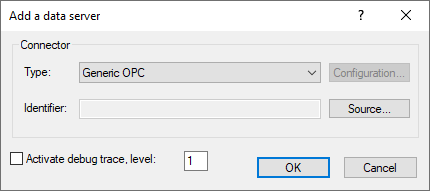

The data server selection windows is displayed:

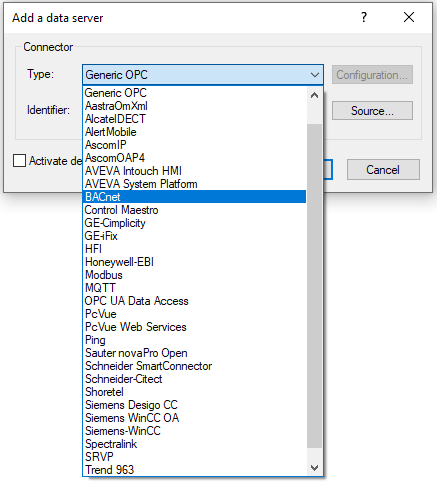

Into the "Type" drop-down list select "BACnet":

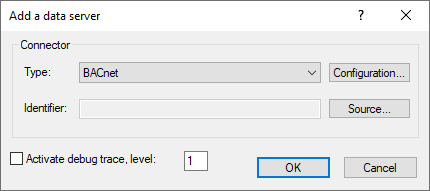

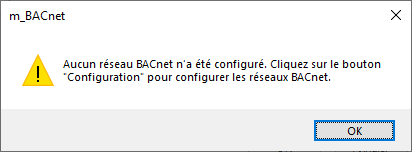

Click on the "Source" button:
Click on the "OK" button to add a BACnet network:

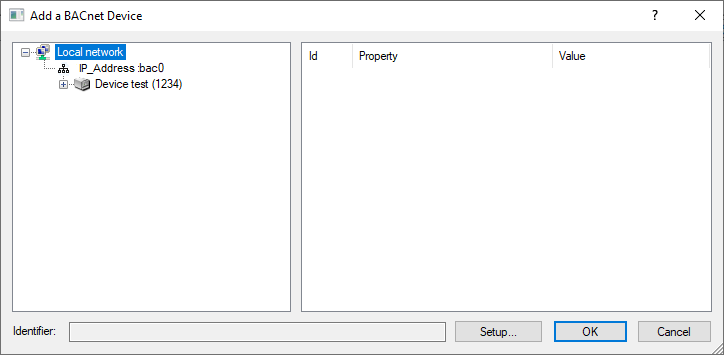

If the server hosting ALERT has only one network card, a broadcast discovery of the "BAC 0" network will be done through this one:
|
If no equipment is displayed, the configuration of the BACnet network must be modified, click on the following link to find out what to do: |

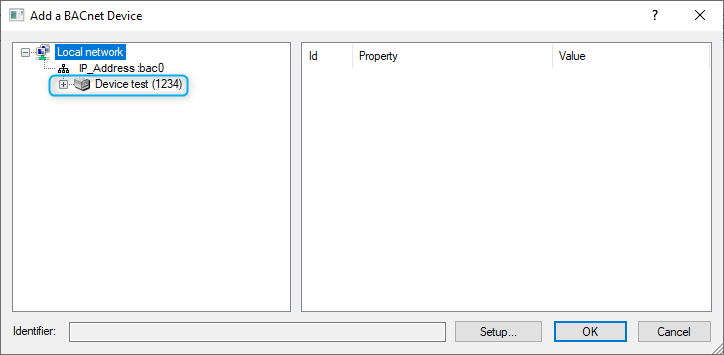

Select the BACnet device to be interrogated:
Click on the "OK" button:

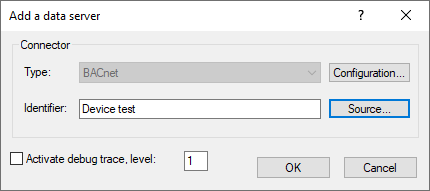

Click on the "OK" button:

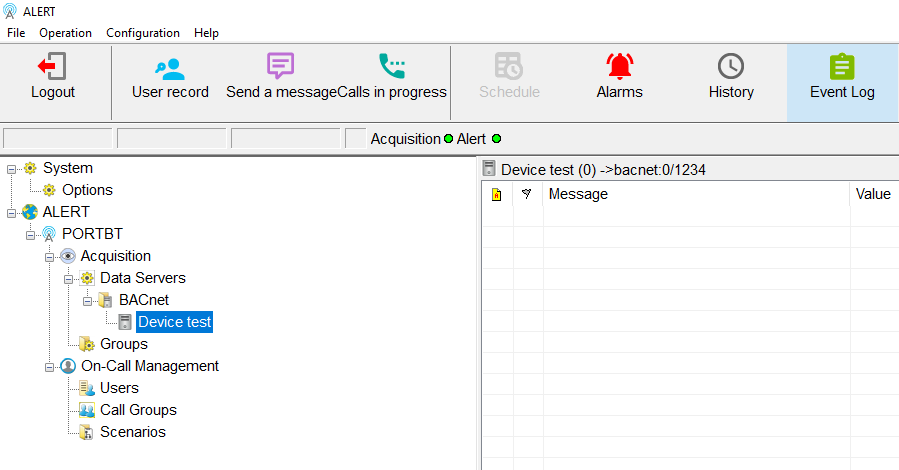

BACnet equipment is added to the ALERT tree structure.
